Overview

The cone crusher is mainly divided into three types: one type for coarse crushing, one for medium crushing and the other for fine crushing. Since the applications of ore determine the type of crushing cavity, the standard cavity is used for medium crushing, the medium one for medium and fine crushing and the short-head type for fine crushing.

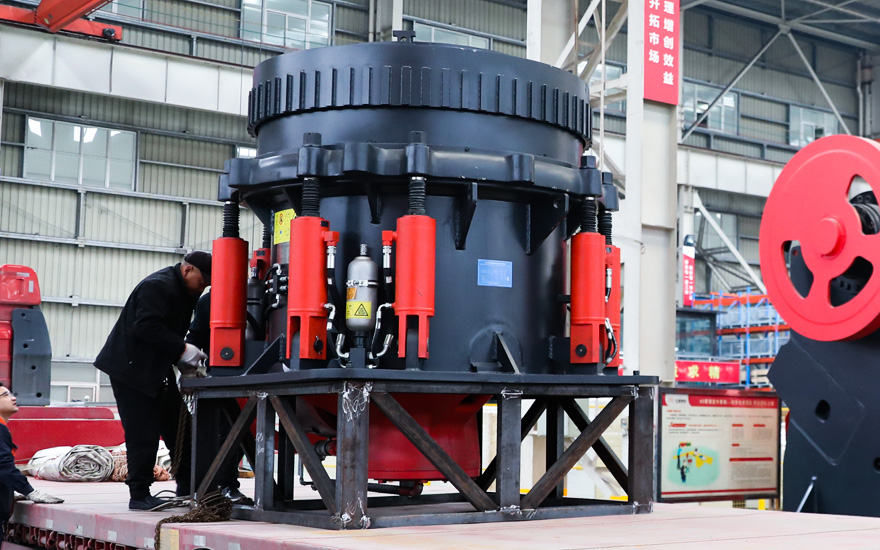

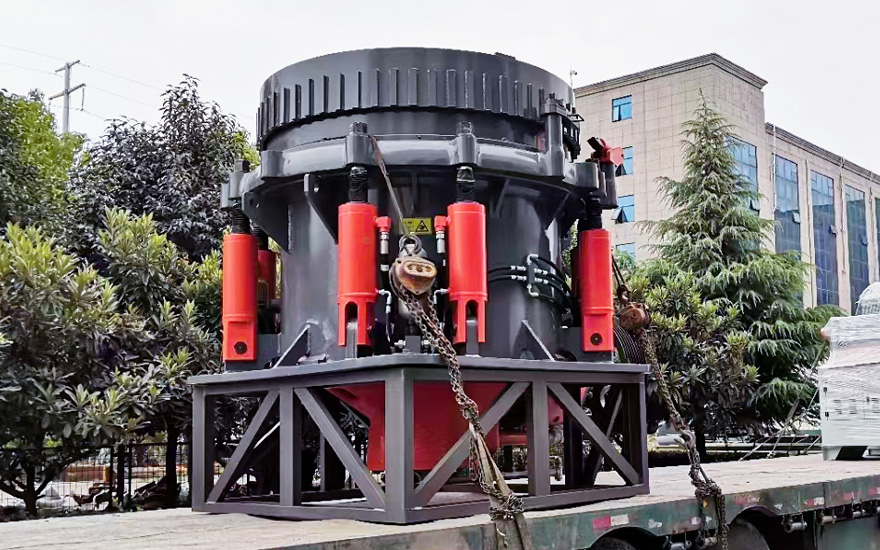

gallery

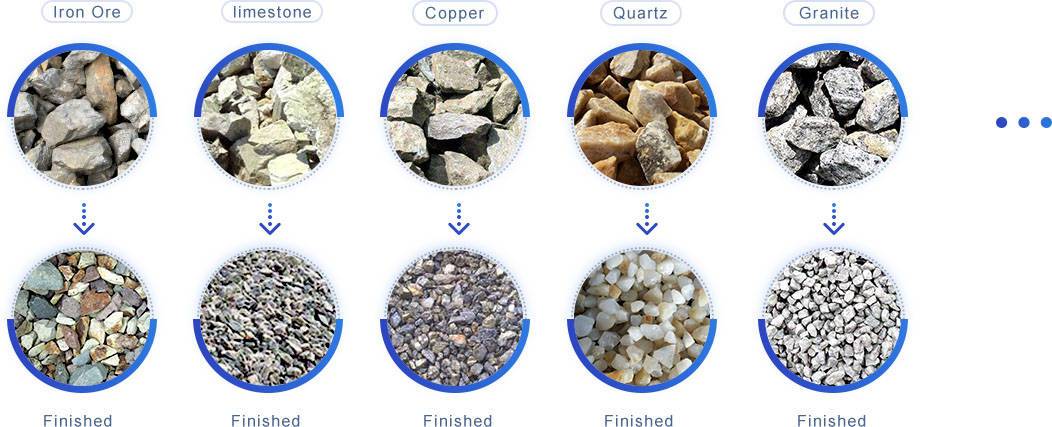

- Applicable Materials:

The cone crusher is suitable for crushing ores and rocks with medium and high hardness, such as iron ore, limestone, copper ore, quartz, and granite.

Working principle

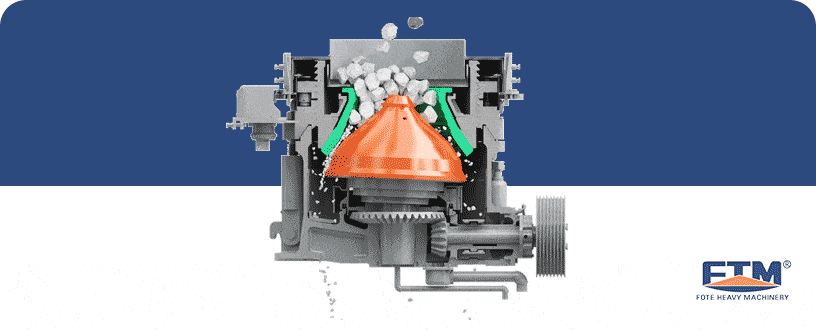

The motor rotates with a pulley or a coupling when the machine begins to run. The drive shaft and the conical cone swing under the drive of the eccentric sleeve. After that, the crushing wall is now close to or now leaves the surface of the shackle wall fixed on the adjusting sleeve, so that the ore is continuously subjected to impact, extrusion and bending in the crushing chamber and then crushed.

Advantages

High Performance and Low Costs

The combination of the optimized cavity, reasonable speed and stroke enables stable and reliable performance, improved capacity and reduced costs. With the principle of laminating and crushing, it can produce more cubic finished products in a uniform size and reasonable gradation.
Safe and Reasonable Operation

Large-diameter spindles and the heavy-duty main frame ensure firm structure and reliable operation. The independent thin oil lubrication system ensures double protection of bearing lubrication; and the iron protecting device and automatic control system enables automatic and safety protection.
Easy to Operate and Repair

All parts can be dissembled from the top or side for easily assembling and dissembling the fixed cone and movable cone. The hydraulic system can quickly clean the crushing chamber, greatly reducing downtime.

Classification

Fote has mainly produced four types of cone crushers, i.e., the single-cylinder hydraulic cone crusher, the multi-cylinder hydraulic cone crusher, the hydraulic cone crusher and the compound cone crusher.

I. The single-cylinder hydraulic cone crusher is developed with the integration of mechanical, hydraulic, electrical, and intelligent control technologies. It can medium, fine and ultra-fine crush materials and is widely used in metallurgy, construction, cement, highways and railways construction, ore beneficiation and other fields.

II. The multi-cylinder hydraulic cone crusher can replace the spring cone crusher and traditional ones in mining construction industry in that its high speed, high capacity and unique patent keep finished products in extremely cubic shape.

III. The hydraulic cone crusher is a new type of cone crusher that Fote Machinery develops by adopting advanced design and optimizing previous machines. In light of better crushing frequency and eccentricity, the content of the discharge granules in the closed side can reach 80%, significantly improving processing capacity in subsequent processes and reducing comprehensive energy consumption.

IV. The compound cone crusher is mainly divided into two types, the standard type and short-head one. In general, the standard features large feeding size and large discharging size; whereas the short-head has a steep crushing cone. Thus, the standard is generally used for coarse and medium crushing and the other for medium and fine crushing.

price

Given that there are many series of cone crushers, their prices are bound to vary. The main influencing factors includes the technology and manufacturing costs.

According to users’ investment on the equipment, Fote Machinery offers different price cuts to you, for example, those who purchase a large cone crusher and other machines will get a higher discount.

case

- The production line of crushing large basalt

basalt: Capacity: 500 t/h

- the jaw crusher - the single-cylinder cone crusher - the multi-cylinder cone crusher - the impact crusher - the vibrating screen

: This production line not only cuts costs, but also improves the efficiency of stone production, allowing us to obtain more benefits.

Specifications

Cone Crusher
Full Hydraulic Cone Crusher
Multi-cylinder Hydraulic Cone Crusher
Single-cylinder Hydraulic Cone Crusher

Type	Model	Max.feeding size（mm）	Adjusting Range of Discharge Opening（mm）	Processing capacity（t/h）	Main motor power（kw）
PSG 1300	1313	110	13-31	109-181	160
	1321	170	16-38	132-253
	1324	190	19-51	172-349
	1306	50	3-16	36-163
	1308	70	6-16	82-163
	1310	85	8-25	109-227

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Cavities	Max.feeding Size（mm）	Adjusting Range of Discharge Opening（mm）	Processing capacity（t/h）	Power（kw）
GYS 300	C1	140	13-38	81-180	90
	C2	80	9-22	60-180
	F1	60	3-16	36-145
GYS 400	C1	190	19-51	207-400	200
	C2	168	16-38	162-350
	F1	85	8-25	109-230
	F2	70	6-16	82-230
GYS 500	C1	215	25-64	280-650	280
	C3	170	16-38	180-410
	F1	105	10-25	162-355
	F3	55	5-13	90-300

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Cavities	Maximum Feeding size（mm）	Adjusting Range of Discharge port（mm）	Capacity（t/h）	Power（kw）
HPM200	C1	145	22	160~250	160
	C2	100	18	145~250
	C3	75	14	120~250
	F1	60	12	108~210
	F2	45	10	81~210
HPM300	C1	190	26	230~445	220
	C2	170	20	200~445
	C3	120	16	180~445
	C4	85	14	160~220
	F1	40	12	140~220

HPM400	C1	240	35	270~630	315
	C2	200	25	252~630
	C3	160	25	243~630
	C4	190	18	210~630
	F1	75	15	162~370
	F2	40	13	126~370
HPM500	C1	270	38	365~790	400
	C2	230	30	328~790
	C3	165	22	280~790
	C4	105	20	202~450
	F1	75	16	175~450
	F2	42	8	158~450
HPM650	C1	262	30	386~790	500
	C2	225	25	348~790
	C3	175	20	300~790
	F1	85	13	280~530
	F2	42	9	220~530
HPM800	C1	280	38	616~1100	630
	C2	240	38	522~1100
	C3	214	25	495~1100
	C4	175	22	380~1100
	F1	125	20	328~730
	F2	75	16	270~730

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

SC Single Cylinder Cone Crusher Medium Crushing Series

Model	Cavities	Maximum Feeding Size （mm）	Minimum Discharging Size （mm）	Capacity（t/h）
SC100S	C1	175	22	85-170
SC100S	C2	160	19	70-130
SC160S	C1	290	25	125-345
SC160S	C2	240	22	108-305
SC250S	C1	360	35	265-524
SC250S	C2	320	29	225-448
SC315S	C1	450	41	349-1050
SC315S	C2	400	38	318-892
SC450S	C1	480	44	498-1500
SC450S	C2	385	41	454-1274

SC Single Cylinder Cone Crusher Fine Crushing Series

Model	Cavities	Maximum Feeding Size （mm）	Minimum Discharging Size （mm）	Capacity（t/h）
SC100	F1	120	10	45-135
	F2	70	10	43-118
	F3	40	6	25-40
SC160	F1	160	13	69-215
	F2	90	10	57-184
	F3	60	8	70-90
SC250	F1	190	16	116-396
	F2	110	13	97-346
	F3	55	9	90-251
SC315	F1	220	32	177-662
	F2	170	29	209-643
	F3	140	29	162-552
	F4	70	19	175-325
SC560	F1	240	22	448-1512
	F2	155	19	380-1373
	F3	70	13	357-912
SC750	F1	295	25	394-2181
	F2	240	19	342-2020
	F3	185	16	267-1814
	F4	95	13	248-1165
	F5	70	10	185-1170

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Cone Crusher
Full Hydraulic Cone Crusher
Multi-cylinder Hydraulic Cone Crusher
Single-cylinder Hydraulic Cone Crusher

Type	Model	Feeding size（mm）	Processing capacity（t/h）
PSG 1300	1313	137	109-181
	1321	210	132-253
	1324	241	172-349
	1306	64	36-163
	1308	89	82-163
	1310	105	109-227

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Max.feeding Size（mm）	Processing capacity（t/h）
GYS 300	140	81-180
	80	60-180
	60	36-145
GYS 400	190	207-400
	168	162-350
	85	109-230
	70	82-230
GYS 500	215	280-650
	170	180-410
	105	162-355
	55	90-300

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Cavities	Maximum Feeding size（mm）	Capacity（t/h）
HPM200	C1	145	160~250
	C2	100	145~250
	C3	75	120~250
	F1	60	108~210
	F2	45	81~210

HPM300	C1	190	230~445
	C2	170	200~445
	C3	120	180~445
	C4	85	160~220
	F1	40	140~220

HPM400	C1	240	270~630
	C2	200	252~630
	C3	160	243~630
	C4	190	210~630
	F1	75	162~370
	F2	40	126~370
HPM500	C1	270	365~790
	C2	230	328~790
	C3	165	280~790
	C4	105	202~450
	F1	75	175~450
	F2	42	158~450
HPM650	C1	262	386~790
	C2	225	348~790
	C3	175	300~790
	F1	85	280~530
	F2	42	220~530

HPM800	C1	280	616~1100
	C2	240	522~1100
	C3	214	495~1100
	C4	175	380~1100
	F1	125	328~730
	F2	75	270~730

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

SC Single Cylinder Cone Crusher Medium Crushing Series

Model	Cavities	Feeding Size （mm）	Capacity（t/h）
SC100S	C1	240	85-170
SC100S	C2	200	70-130
SC160S	C1	360	125-345
SC160S	C2	300	108-305
SC250S	C1	450	265-524
SC250S	C2	400	225-448
SC315S	C1	560	349-1050
SC315S	C2	500	318-892
SC450S	C1	600	498-1500
SC450S	C2	480	454-1274

SC Single Cylinder Cone Crusher Fine Crushing Series

Model	Cavities	Feeding Size （mm）	Capacity（t/h）
SC100	F1	150	45-135
	F2	90	43-118
	F3	50	25-40
SC160	F1	200	69-215
	F2	115	57-184
	F3	75	70-90
SC250	F1	240	116-396
	F2	140	97-346
	F3	70	90-251
SC315	F1	275	177-662
	F2	215	209-643
	F3	175	162-552
	F4	85	175-325
SC560	F1	300	448-1512
	F2	195	380-1373
	F3	90	357-912
SC750	F1	370	394-2181
	F2	300	342-2020
	F3	230	267-1814
	F4	120	248-1165
	F5	85	185-1170

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

7*24h
Online

Quote Online

Leave Message

* Your information will
never be revealed.

Series

1

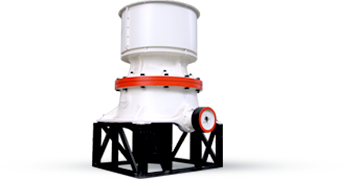

Single-Cylinder Hydraulic Cone Crusher

Advantage
Characteristics

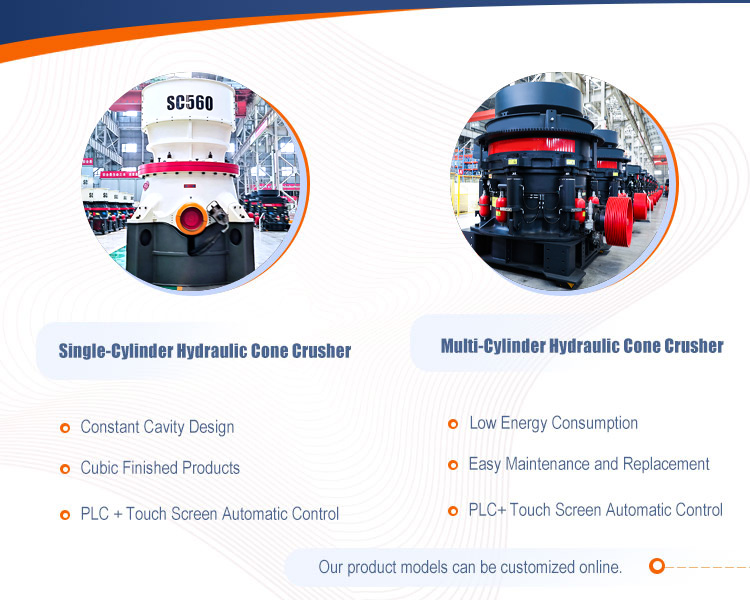

I. high-quality finished products The hydraulic cone crusher adopts the unique crushing cavity shape and laminated crushing principle to execute the crushing effect among the particles. Thus, the proportion of the cubic particles in the finished products is obviously increased, that of needle-like stones is reduced, and the particle size is more uniform.
+Learn More

II.The hydraulic lubricating system controlled by the double insurance ensures overload protection and great bearing lubrication.

III.The machine features a simple structure, high reliability, easy maintenance and low operating cost.

IV.The design of constant cavity prolongs the service life of the lining.

V.The combination of multiple cavity types meets the requirements for various particle sizes.

VI.The automatic control system of PLC + touch screen enables safe operation.

2

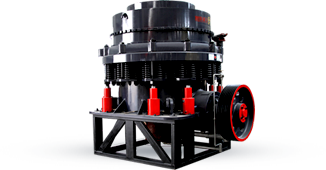

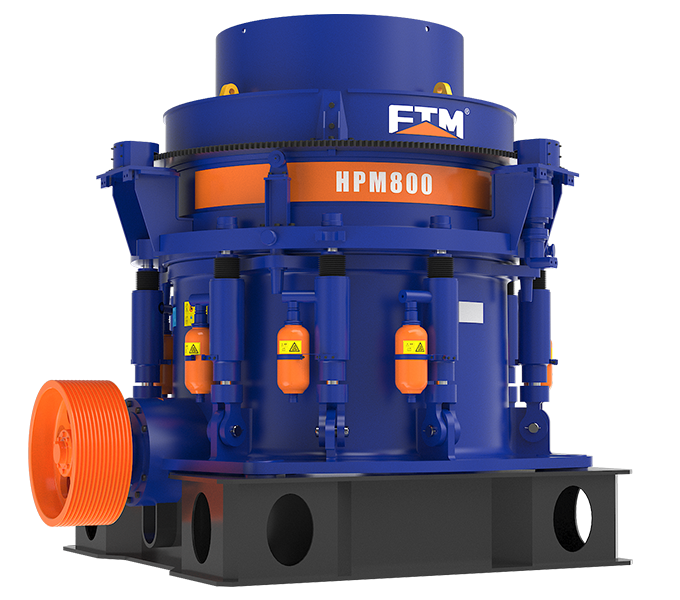

Multi-Cylinder Hydraulic Cone Crusher

Advantage
Characteristics

I.The rolling wall does not need feeding so that it is fast and convenient to replace.
+Learn More

II.Thanks to the hydraulic motor, it is easy to adjust the discharge port.

III.The design of fixed-axis structure enhances the rushing force and lowers investment.

IV.All parts can be disassembled from the top or side for easy maintenance.

V.The laminated crushing cavity keeps cubic finished products in a uniform size and lowers energy consumption.

VI.The automatic control system of PLC+ touch screen ensures safe operation; and the machine is equipped with a remote touch screen operating interface, which shows real-time running status.

3

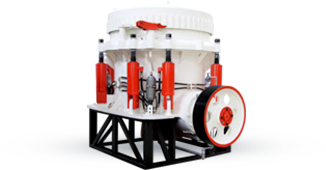

Hydraulic Cone Crusher

Advantage
Characteristics

I.The safety cylinder can automatically control the overload protection and cleaning function.
+Learn More

II.The fully automatic control system helps users realize remote operation or control the machine when standing near it.

III.The small hydraulic lubricating combined oil station is simple to wire.

IV.The discharge port is easily adjusted by the hydraulic push cylinder.

V.The dust remover is sealed with dry oil; thus, the machine has a reliable structure and low failure rate.

4

Compound Cone Crusher

Advantage
Characteristics

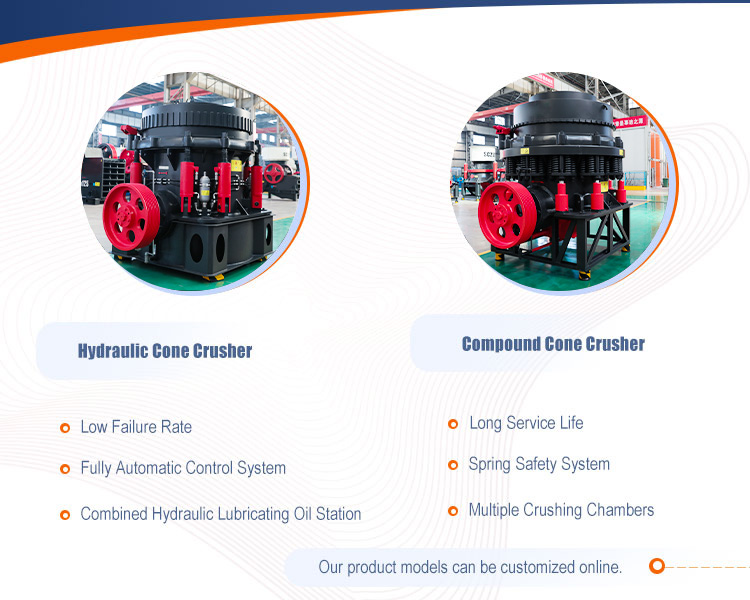

I.Thanks to the reasonable structure design and spare parts, and its service life is quite long. The finished products also have a uniform particle size, which reduces the cyclic load.
+Learn More

II.The hydraulic cleaning chamber is designed to reduce downtime.

III.There are many types of crushing chambers and users can choose a right cavity type according to your needs.

IV.The machine is sealed with grease, which avoids the defects of clogging in the water supply and drainage system and as well as the mixing of water and oil.

V.The spring safety system is adopted as an overload protection device that allows unknown materials and iron to pass through the crushing chamber without damaging the machine.
